ASV F4 Series Front Brake Lever/Perch - Mini Bikes
by ASV
Sold out
Original price
$120.00
-
Original price
$120.00
Original price
$120.00
$120.00
$120.00
-
$120.00
Current price
$120.00
Availability:
Out of stock
SKU BDF405SX-K

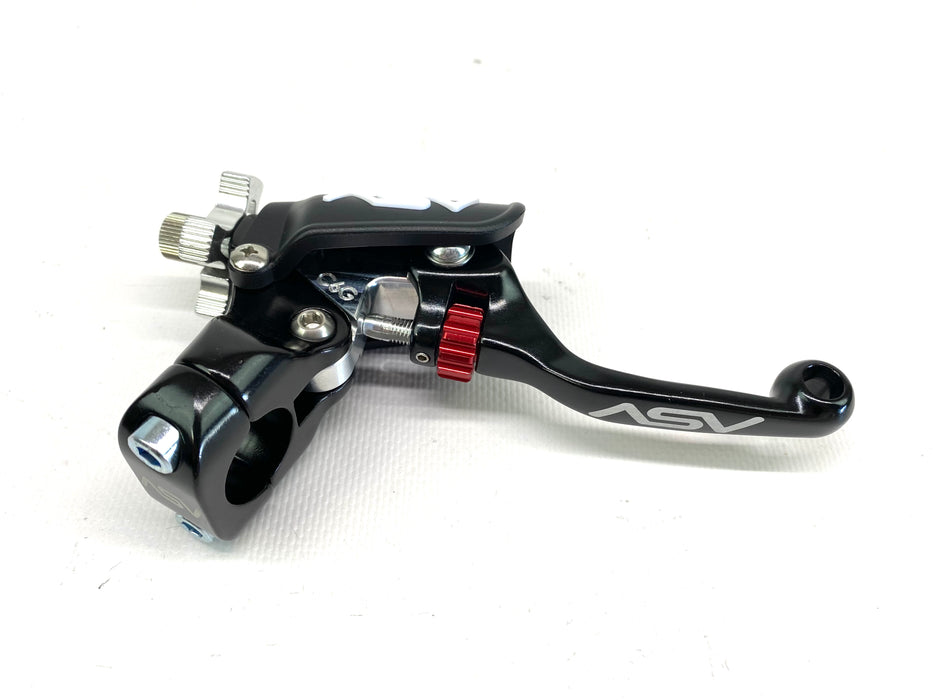

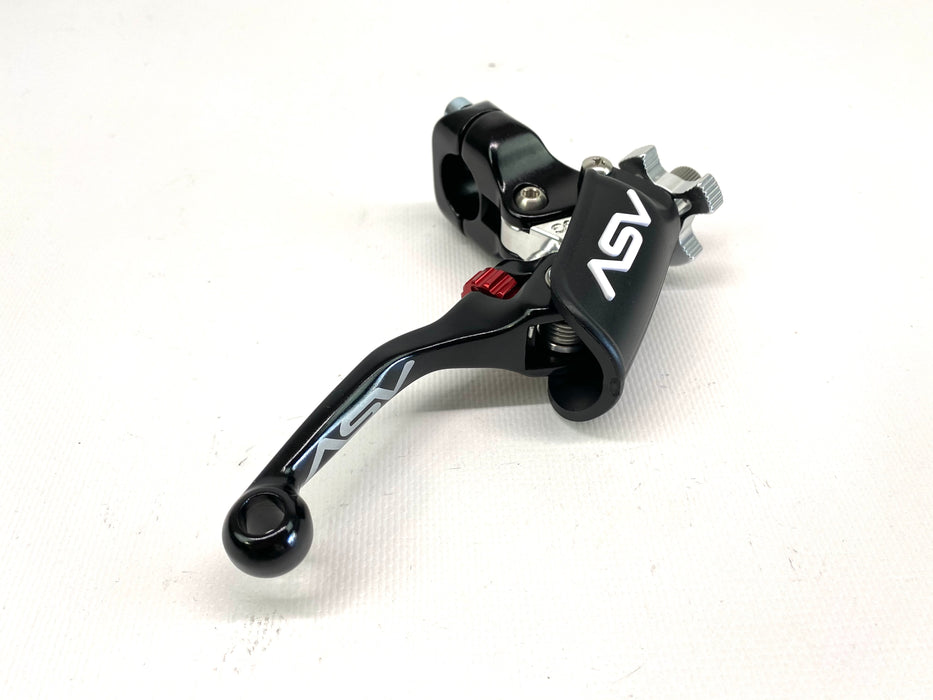

Front brake lever for drum brake applications; includes a perch
** Dust Cover included!
Recommended - ASV Perch Spacer
Specifications & Features
- Lever is shorty length
- Front brake lever for drum brake applications; includes a perch
- Unbreakable lever with pivot design

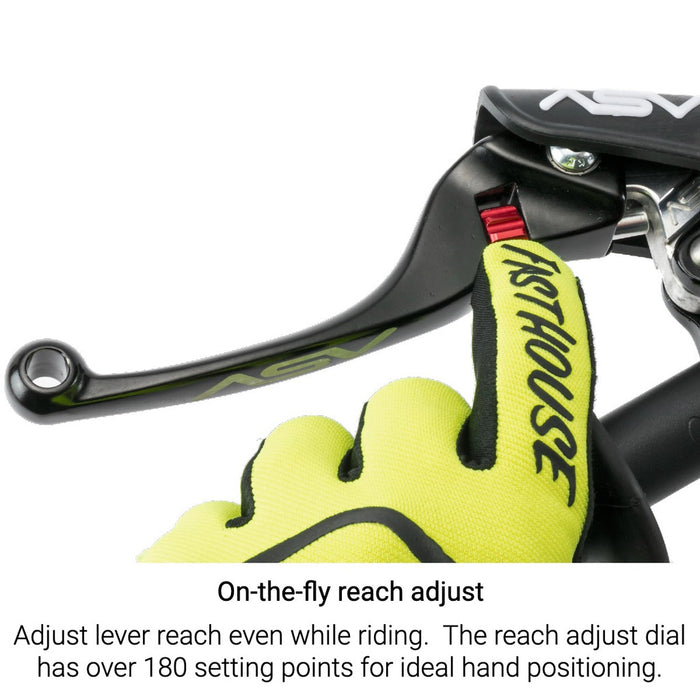

- On-the-fly adjustable reach with 4 inches of range
- Micro-indexing dial reach adjuster
- Forged aluminum
- Precision-sealed bearing in the pivot
- Chrome silicon high-tension spring
- Stainless-steel fasteners
- Completely rebuildable
- 4-year unconditional guarantee
- Made in the USA
FItment BDF405SX
Honda
CRF 100F | 04-13
CRF 110F | 13-23
CRF 70F | 04-12
CRF 80F | 04-13
XR 100 | 73-02
XR 200 / R | 73-02
XR 50 | 73-02
XR 70 | 73-02
XR 75 | 73-02
XR 80 | 73-02
Kawasaki
KLX 110 | 02-21
KLX 110L | 10-20
KLX 110R / RL | 21-21
KLX 125 (Drum Brake) | 03-06
Suzuki
DR-Z 110 | 03-05
DR-Z 125 | 03-13
Yamaha
PW80 | 99-08
TT-R 110E | 08-21
TT-R 125E | 03-09
TT-R 50E | 06-21
TT-R 90E | 03-07
ASV FAQ
What are the difference between “Standard” and “Pro” perch?
Both perches are similar in design and looks except for the following:
ASV Pro Perch
- One-Handed On-The-Fly Clutch Cable Adjust tensioner - (available in multiple colors)
- Includes ASV Rotator Clamp which enables forward and rearward rotation of the perch for easy adjustments.
It also saves the lever in the event of a spill. - Includes ASV Perch dust cover to protect bearings from environmental hazards
- Includes cable dust cover boot
- Made with bearings between the perch and lever

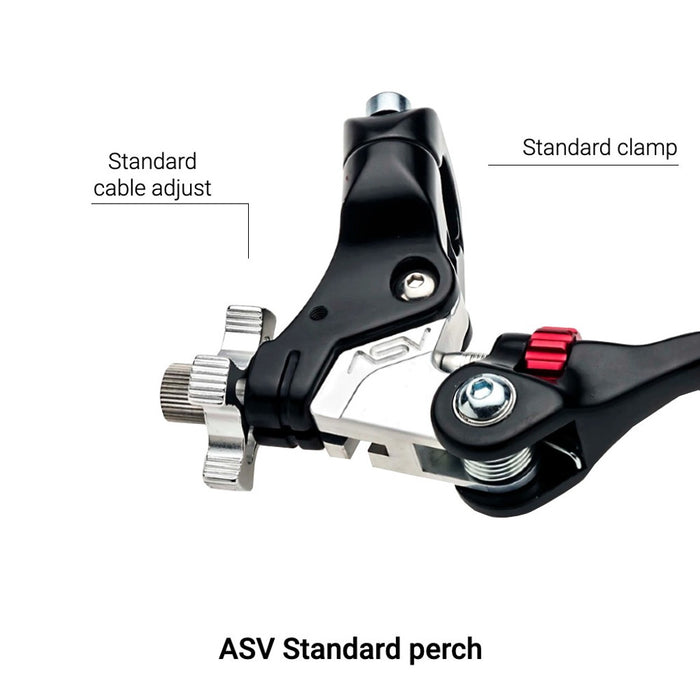

- Standard barrel with Jam Nut (requires two hands and a parked bike)
- Bushing between perch and lever
- Standard (non-rotating) mounting clamp on perch
- Optional Bearing upgrade ($10)
- Optional ASV rotator clamp ($25)
- Optional dust covers ($15)
